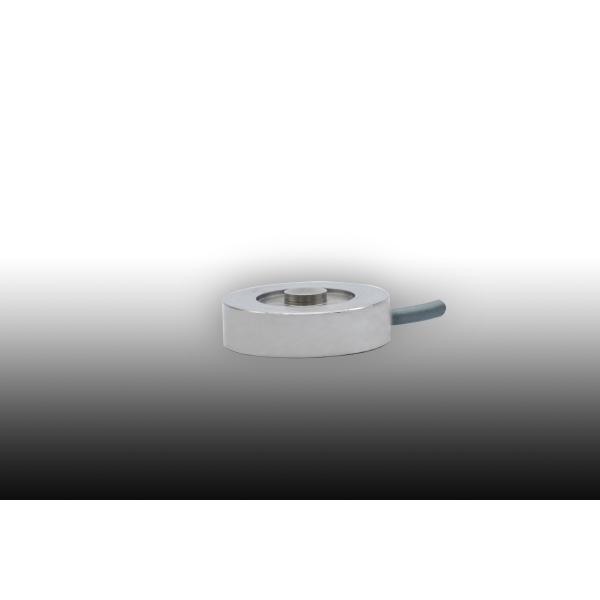

High Precision Micro Weight Sensor For Electronic Weighing System

Brand Name : ruijia

Model Number : RJ-8630

Place of Origin : china

MOQ : 1pc

Price : USD30/pc

Payment Terms : Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 2-4 weeks

Packaging Details : Product packed in foam box with bubble bag.

Usage : Pressure Sensor

Output : Analog Sensor

Capacity : 3-50kg

Dimension (mm) : 80*12.7*12.7mm

Comprehensive error (%F.S) : ±0.05

Accuracy : C2 / C3

Excitation voltage (V) : 5-10(DC)

Application : postal scales, kitchen scales,fishing scales etc.

Contact Now

Small High Precision Weighing Sensor Applied To Electronic Weighing System Good Product Quality

What is load cell?

Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas.

It is mainly applied to the force value detection area in small installation space of Key hand sensitivity tester, Pressure testing of cold and hot press, hand grip of robot etc.

Dimension:

Range B C D E F G H I J K SR
5-500KG 11 8.5 5 4-M2.5 depth 5 16.5 3.2 7.5 5 2 5.7 20
1-2T 11 8.5 6 4-M2.5 depth 5 16.5 3 7.5 5 2 5.7 20
50-100KG 5 4.5 2.5 4-M2.5 16.5 1.7 0 0 2 0 10

High Precision Micro Weight Sensor For Electronic Weighing System

Specifications:

Item Specification
Rated capacity 20/50/100/200/500/1000
Rated output 1.0-1.5mv/v
Comprehensive error
Non-linearity 0.5%F.S
Repeatability 0.5%F.S
Hysteresis 0.5%F.S
Temp. effect on zero ±0.1%F.S/10℃
Temp. effect on span ±0.1%F.S/10℃
Input resistance 350(700)±5Ω
Output resistance 350(700)±3Ω
Insulation resistance ≥5000MΩ/100VDC
Excitation voltage 2.5-5V
The max. voltage 5V
Compensated temp. range -10-60℃
Use temp. range -20-80℃
Safe overload 120%
Ultimate overload 150%
Cable dimension Φ2.5*3m
Wiring connection EX+ red EX- balck SIG+ green SIG- white

Detailed Images

High Precision Micro Weight Sensor For Electronic Weighing System

Product flowchart

High Precision Micro Weight Sensor For Electronic Weighing System

FAQ

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. When will you arrange the production?

We will arrange the production immediately after receiving your payment.

3. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
